Jetway NF99FL-525 (Intel Pine Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !

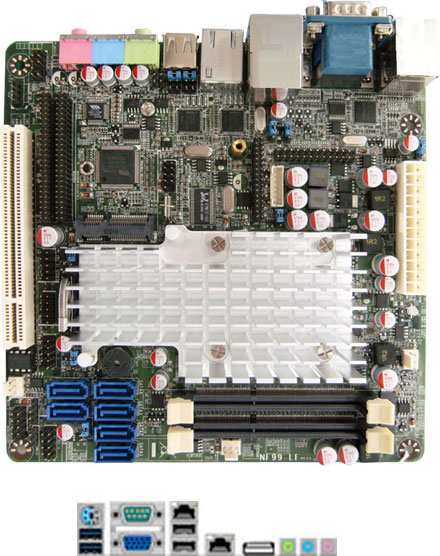

Jetway NF99FL-525 (Intel Pine Trail-D)

  • INTEL® Atom Processor D525 + ICH9R Chipset
  • Support INTEL® Atom Processor D525 (Dual Core) CPU
  • Support Single Channel DDR3 800
  • Support CPU Smart FAN
  • Integrated LVDS support 18-bit Single Channel
  • Supports 2 x Intel Gigabit LAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology

Product Accessories
- COM cable
- Manual
- CD
- 6x SATA cable
- I/O shield


Share

CPU INTEL® Atom Processor D525 (Dual Core) CPU
Chipset INTEL ® Atom Processor D525 + ICH9R Chipset Clock 200MHz
Memory 2 * SO-DIMM Sockets for un-buffered Single Channel DDR3 800 SDRAM up to 4 GB
Expansion Slots 1 * PCI slot 1 * MINI PCI-E
Storage 6 * Serial ATA2 3Gb/s connectors
Audio VIA VT1705 6-Channel HD Audio CODEC
Ethernet LAN 2 * Intel 82574L PCI-E Gigabit Ethernet LAN
LVDS Onboard 18-bits single channel LVDS connector
USB Embedded 9 * USB 2.0/1.1 & 2 * USB 3.0
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 3 * USB 2.0/1.1 & 2 * USB 3.0 ports 1 * PS2/KB Connector (Optional) 2 * RJ-45 port 1 * COM port 1 * VGA port 3 * Audio Phone Jack
Internal I / O 3 * USB 2.0/1.1 headers for 6 USB 2.0 ports CPU /NB / Chassis Fan connectors; 1 * 32-pin LVDS headers & 1 * GPIO header & 1* Parallel headers 1 * COM header ( COM1 for RS-422/485) 1 * AUDIO header
BIOS AMI 8MB DIP Flash ROM
Form Factor Mini ITX Form Factor(170mm x 170mm)
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Specifications [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from mgerling am 16.07.2013 | | See all my comments

Schnelle Lieferung, gerne wieder!!! Das NF99FL läuft bei mir in einem energieeffizienten Server.

HW-Konfiguration: 2GB RAM, 1x SATA-SSD Transcend 64GB, 4x HDD WD Green/Red je 2TB, 1x SATA-DVD-R Multi
OS: OS/2 Server for e-Business (Directory Services, Remote-Boot, SMB-File Server), FTP-Server, HTTP-Server, Schnittstellenserver RS-232, Haus-Automation House/2, DLNA-Server Mediatomb
