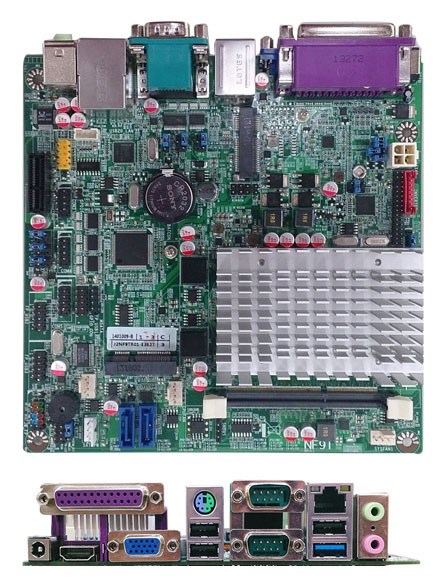

Jetway NF9T-2930 (Intel Bay Trail-M)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF9T-2930 (Intel Bay Trail-M)

  • INTEL® Bay Trail-M N2930 SoC Processor
  • 1 * SO-DIMM solt (Max 4GB)
  • 2 * Mini PCIE slot
  • 2 * RTL8111G PCI-E Gigabit LAN
  • Realtek ALC662 HD Audio CODEC with 2-Channel
  • Support 1 * 2.5” SATA Device (Max Height 9.5 mm)
  • Support 1 * m-SATA SSD Device (Mini PCI-E)
  • 1 * USB 3.0 port
  • 3 * USB 2.0/1.1 ports
  • 2 * RJ-45 ports(Gigabit LAN)


Share

RAM :

SSD (mSATA):

Build/Install:
Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
Processor System
CPU - Intel® Atom™ Baytrail-M/D/I Processor
- Supports Hyper-Threading Technology
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - UEFI
Expansion Slot
Mini-PCIe - 1 (half size)
mSATA - 1 (full size)
PCIe - 1 (x1)
Memory
Technology - Single Channel DDR3L 1333/1066 MHz SDRAM (By CPU)
Max. - 8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
LVDS - Dual Channel 24-bit, max resolution 1920x1200@60Hz
HDMI - Supports HDMI 1.4a, max resolution 1920x1200
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel 82583V
Connector - 1 x RJ 45
SATA
Max Data Transfer Rate - SATAII (3.0Gb/s)
Rear I/O
VGA - 1
HDMI - 1
Ethernet - 1
USB - 4 (1 x USB 3.0, 3 x USB 2.0)
Audio - 2 (Mic-in, Line-out)
Parallel - 1
Serial - 1 x RS-232, 1 x RS-232/422/485. with 5V/12V selectable header
PS2 - 1 (Combo)
DC-input - 1
Internal Connector
USB - 5 (4 x USB 2.0 via 2 x10pin header, 1 x USB2.0 via 5pin header)
LVDS / inverter - 1/1
Serial - 3 (3 x RS-232 with 5V/12V selectable header)
SATA - 2 x SATAII (3.0Gb/s)
mPCIe - 1
mSATA - 1 (shared SATA2)
GPIO 8-bit - Programable
Chassis intrusion - 1 (via 12pin header)
Audio Header - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR - 12V DC-In (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
Environment
Temperature - Operating: 0– 60
- Storage: -20– 85
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
