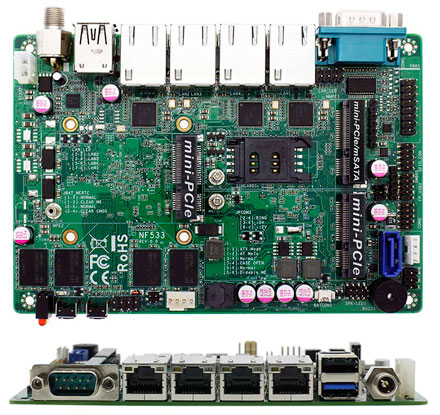

- Intel® Bay Trail Celeron® Processor J1900 2.0G Quad Core
- Integrated Intel® HD Graphics, VGA interface
- Max. Resolution 2560 x 1600/60Hz
- Support DDR3L 1333MHz Single Channel
- Onboard 4GB System Memory
- 4 * Intel i211AT PCIe GbE LAN
- 1 * Serial ATAII (3Gb/s)
- 1 * External COM (RS232), 1 * Internal COM (RS232)
- 1 * External USB3.0, 1 * USB1.1/2.0, 2 * Internal USB1.1/2.0
- 2 * Full size mPCIe, 1 * Full size mPCIe shared with mSATA
- 1 * SIM Card Holder
- Lockable DC-in PWR JACK
- 3.5” Form Factor (148mm x 102mm)
[more]
- Intel® Bay Trail Celeron® Processor J1900 2.0G Quad Core
- Integrated Intel® HD Graphics, VGA interface
- Max. Resolution 2560 x 1600/60Hz
- Support DDR3L 1333MHz Single Channel
- Onboard 4GB System Memory
- 4 * Intel i211AT PCIe GbE LAN
- 1 * Serial ATAII (3Gb/s)
- 1 * External COM (RS232), 1 * Internal COM (RS232)
- 1 * External USB3.0, 1 * USB1.1/2.0, 2 * Internal USB1.1/2.0
- 2 * Full size mPCIe, 1 * Full size mPCIe shared with mSATA
- 1 * SIM Card Holder
- Lockable DC-in PWR JACK
- 3.5” Form Factor (148mm x 102mm)
Rear I/O |
VGA |
- 0 |
SPDIF Output |
- 0 |
DVI |
- 0 |
Serial |
- 1 ( RS232 ) |
HDMI |
- 0 |
|
|
DisplayPort |
- 0 |
Parallel |
- 0 |
Ethernet |
- 4 |
eSATA |
- 0 |
USB |
- 2 ( 1*USB3.0, 1*USB1.1/2.0 ) |
PS2 |
- 0 |
Audio |
- 0 |
DC-Input |
- 1 ( 12V Lockable DC-In PWR Jack ) |
Internal Connector |
USB |
- 2 ( USB1.1/2.0 ) |
SIM Card Holder |
- 1 |
PS/2 |
- 1 |
CFast Card Socket |
- 0 |
LVDS / |
- 0 |
CF Card Socket |
- 0 |
Inverter |
|
CIR |
- 0 |
VGA |
- 1 |
GPIO 8-bit |
- 1 ( 4in/4out ) |
Serial |
- 1 |
Chassis intrusion |
- 1 |
|
( RS232 with 5V/12V selectable header ) |
Audio Header |
- 0 |
Parallel |
- 0 |
SPDIF |
- 0 |
SATA |
- 1 ( SATAII 3.0Gb/s ) |
HDMI-SPDIF |
- 0 |
mPCIe |
- 3 |
SMBUS/ I2C |
- 1 ( SMBUS ) |
|
( 2*Full size, 1*Full size shared with mSATA ) |
AT mode jumper |
- 1 |
mSATA |
- 0 |
Jetway Daughter |
- 0 |
M.2 |
- 0 |
Audio Amplifier Header |
- 0 |
|
|
|
|
Other |
Power |
- 12V Lockable DC-In PWR Jack, Supports AT/ATX Mode |
Watchdog Timer |
- Programmable 1 ~ 255 sec/min |
Certifications |
- CE, FCC, RoHS, REACH |
Temperature |
- Operating : 0℃ ~ 60℃, Storage : -20℃ ~ 85℃ |
Product Specifications
|
Form Factor
|
Dimensions |
- 3.5” Form Factor ( 148 x 102mm ) |
Processor System |
CPU |
- Intel® Bay Trail Celeron® Processor J1900, TDP : 10W |
Core Number |
- Quad Core |
Speed |
- Processor Base Frequency : 2.0GHz, Burst Frequency : 2.42GHz |
L2 Cache |
- 2MB |
Chipset |
- SoC |
BIOS |
- AMI 64Mb Flash ROM |
Expansion Slot |
PCI |
- 0 |
PCIe |
- 0 |
Memory |
Technology |
- Single Channel DDR3L 1333MHz |
Max. |
- 4GB |
Socket |
- 0 ( Memory Onboard ) |
Graphics |
Controller / VRAM |
- Intel® HD Graphics / Shared system memory |
VGA |
- Yes ( Max. Resolution : 2560X1600@60Hz ) |
DVI |
- No |
HDMI |
- No |
DisplayPort |
- No |
eDP |
- No |
LVDS |
- No |
MultiDisplay |
- No |
Ethernet |
Interface |
- 10/100/1000 Mbps |
Controller |
- PCIe GbE LAN: Intel i211AT |
Connector |
- 4 * RJ 45 |
Audio |
CODEC |
- No |
Channel |
- No |
SATA |
Max. Data Transfer Rate |
- 1 * SATAII (3.0Gb/s) |
RAID Support |
- No |
