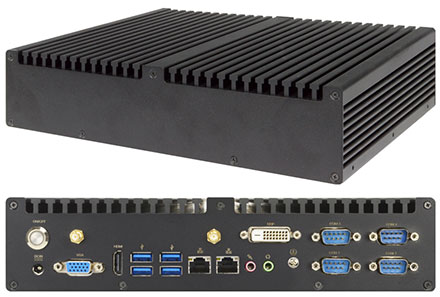

Jetway HBJC501C8H-H310 (Intel Coffee Lake-S)

Jetway HBJC501C8H-H310 (Intel Coffee Lake-S)

  • Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor
  • Intel® Coffee Lake‐S H310 Chip
  • Support Dual Channel DDR4 2133MHz up to 32GB
  • 1* Intel®I219‐VGiga LAN + 1* Intel® i225-V 2.5GbE
  • Support 1* SATA III (6Gb/s) & M.2 (M key 2242)
  • 1* M.2 E key Support CNVi
  • 4* RS232 (COM1/2 Support 5V/12V TTL, 4* USB3.0
  • Support HDMI/VGA /EDP (Option)
  • DC 12~24V Input


Share

539.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 Model – HBJC501C8HV-H310
– HBJC501C8HVI-H310 (Wifi)
 CPU/Chipset – Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (TDP 35W)
– Intel® Coffee Lake-S H310 Chip
 BIOS – AMI 128MB SMT Flash ROM
 Memory – 2* DDR4 2133MHz up to 32GB
 Network – 1* Intel® I219-V GbE
– 1* Intel® I225-V 2.5GbE
– 1* WIFI2.4/5G + BTV4.1 (M.2 E key)
 Graphics – 1* HDMI (Max. Resolution : 4096×2160@30Hz)
– 1* VGA (Max. Resolution: 1920×1080@60Hz)
– 1* eDP (Option, Max. Resolution: 4096×2304@60Hz)
– Support Dual Displays or Triple Displays with eDP
 Storage – 1* 2.5” SATA 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1* M.2 (M-key 2242)
 Expansion slot – 1* PCIe x4 slot
– 1* WIFI2.4/5G + BTV4.1 (M.2 E key)
 Rear Panel I/O – 4* USB3.0
– 1* HDMI
– 1* VGA
– 1* eDP
– 2* RJ45
– 4* RS232
– 1* Line-out +MIC
– 1* DC Jack
– 1* Power Button
 Front Panel I/O – NA
 Internal Connector – NA
 Compliance – CE, FCC, RoHS, ErP Ready (option)
 Power Source – MB: DC 12~24V input
– Adapter: AC_90~240V/ DC_19V / 120W
 Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
 Dimensions – System: 264 (W) x 199.4 (D) x 58 (H) mm
 OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
