Jetway HBJC386F951TW-3940B (Intel Apollo Lake-I SoC processor, wide range Temperature, Powered COM, Isolated GPIO, Isolated RS485, 9~36V DC-in)

PRODUCT IS CURRENTLY NOT AVAILABLE !

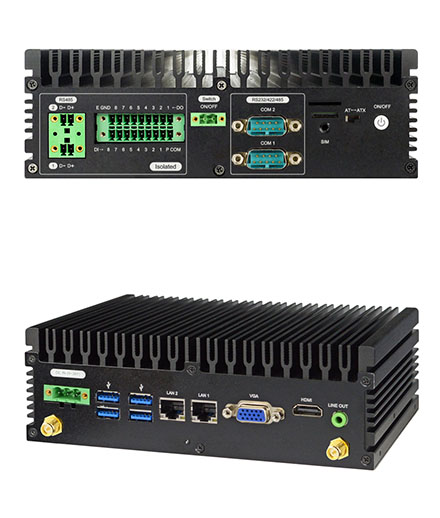

Jetway HBJC386F951T<b>W</b>-3940B (Intel Apollo Lake-I SoC processor, wide range Temperature, Powered COM, Isolated GPIO, Isolated RS485, 9~36V DC-in)


  • Intel Apollo Lake-I SoC Processor (Default: E3940)
  • Support 1* SO-DIMM DDR3L-1866MHz up to 8GB
  • All-aluminum body, produced by casting process
  • Operating Temperature: -40 ~ 70°C
  • 9~36V DC-in (Phoenix terminal connector)


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
MB Model – JNF951T-E3940
Model No. – HBJC386F951T-3940B
– HBJC386F951TW-3940B (WIFI)
BIOS – AMI Flash ROM
CPU/Chipset – Intel® Apollo Lake-I SoC Processor (Default: E3940)
Memory – 1* SO-DIMM slots DDR3L-1866MHz up to 8GB
Storage – 1* M.2 (M-key 2280) slot for SSD
Network – 2* Intel i210-IT GbE
– 1* Full-size mini-PCIE slot
Rear Panel I/O – 4* USB3.0
– 2* RJ45
– 1* VGA (Max. Resolution: 1920×1200@60Hz)
– 1* HDMI (Max. Resolution: 3840×2160@30Hz)
– 1* Line out
– 2* WIFI Antenna (HBJC386F951TW-3940B only)
– 1* DC-in (3 Pin Phoenix terminal)
Front Panel I/O – 1* Power SW + Power LED
– 1* ATX & AT mode Switch
– 1* SIM Card slot
– 2* COM (RS232/422/485_ COM1 w/power)
– 1* Power SW (2 PIN out)
– 1* 16 bit GPIO (8-IN, 8-OUT, Isolation Protection 2,500VDC, Output Voltage 5~20VDC)
– 2* RS485 (Isolation Protection 2,500VDC)
Power Source – Adapter: AC 90~240V input / DC12V-5A-60W
– MB: Support 9~36V DC-in
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Temperature – Operating Temperature: -40 ~ 70° C (Under the condition of using M.2 interface SSD)
(The test environment is closed and windless)
– Storage Temperature: -40 ~ 80° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Dimensions – 185 (W) x 142 (D) x 60 (H) mm
Packing – Net Weight: 2.2KG
– Gross Weight: 3.5KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
