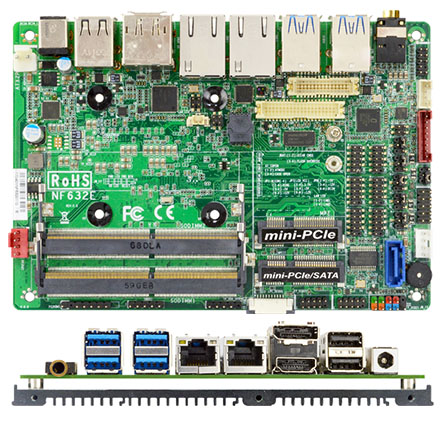

Jetway JNF632N-7300U (Intel SoC-7300U) [PCIe 4.0, 2x LAN, 6x USB, 9-24V DC-in]

Jetway JNF632N-7300U (Intel SoC-7300U) [PCIe 4.0, 2x LAN, 6x USB, 9-24V DC-in]
  • Intel Skylake-U / Kabylake-U SoC !
  • 3,5" Form Factor !
  • PCIe 4.0 !

  • Intel® Skylake-U / Kabylake-U SoC Processor (Default: i5-7300U, TDP 15W)
  • 2* DDR4 SO-DIMM slot up to 32GB
  • Support DP, HDMI, eDP/LVDS (triple display)
  • Realtek ALC662VC Audio CODEC
  • 1* SATAIII, 1* mSATA (shared with mPCIe), 1* full size mPCIe (shared with mSATA), 1* half size mPCIe
  • 5* Internal RS232, 1* Internal RS232/422/485, 4* External USB3.0, 2* External USB1.1/2.0, 5* Internal USB1.1/2.0, 2* GbE
  • Support Wide Voltage 9~24V DC-in


Share

849.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

OS:

Build/Install:
Model – JNF632N-3955U
– JNF632N-7200U
– JNF632N-7300U (Default)
Form Factor – 3.5” SBC (148 * 102mm)
Processor System – Intel® Skylake-U/Kabylake-U SoC Processor (TDP 15W)
– Intel 7300U SoC chipset
– AMI 128Mb SMT Flash ROM BIOS
Expansion Slot – 2* Mini PCIe (1* full size, shared with mSATA, 1* half size)
– 1* mSATA (full size, shared with mPCIe)
Memory – 2* Dual CH DDR4 2133MHz SDRAM SO-DIMM up to 32GB
Graphics – Intel® HD Graphics, shared memory
– 1* LVDS (Max. 1920 x 1080@60Hz resolution) (Selectable with eDP, not working while using LVDS)
– 1* eDP1.3 (Max. 4096 x 2304@60Hz resolution) (Selectable with LVDS, not working while using eDP)
– 1* HDMI1.4 (Max. 4096 x 2160@24Hz resolution)
– 1* DP1.2 (Max. 4096 x 2304@60Hz resolution)
– Support Triple Displays
Ethernet – 1* Intel® i219LM GbE
– 1* Intel® i211AT GbE
Audio – 2 channel HD audio: Realtek ALC662VC
SATA – 1* SATAIII (6.0Gb/s)
Rear I/O – 1* HDMI
– 1* DP
– 2* RJ45
– 4* USB3.0
– 2* USB2.0
– Line-out
– DC-in
Internal I/O – 5* USB 2.0
– 1* PS/2
– 1* LVDS (Selectable with eDP, not working while using LVDS)
– 1* eDP (Selectable with LVDS, not working while using eDP)
– 5* RS232
– 1* RS232/422/485
– 1* SATAIII (6.0Gb/s)
– 1* Mini PCIe (full size, shared with mSATA), 1 (half size)
– 1* mSATA (shared with mPCIe)
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/ I2C
– Support onboard TPM2.0 (option)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power DC-IN 9~24V
AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 7, 8, 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
