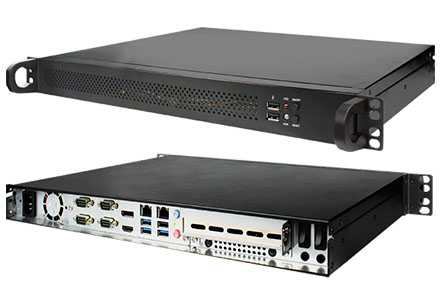

Jetway HBJC150I08-H410-B (Intel Comet Lake-S, LGA1200) [19" Case, 2x LAN]

Jetway HBJC150I08-H410-B (Intel Comet Lake-S, LGA1200) [19" Case, 2x LAN]
  • Intel Comet Lake-S !
  • H410 Chipset !
  • 19" Enclosure !

  • Intel® 10th LGA1200 Socket Comet Lake-S Processor (Max. 65W TDP)
  • Support 2* DDR4 2666/2400MHz SO-DIMM up to 64 GB
  • 3* USB3.2, 3* USB2.0, 4* COM, 1* HDMI, 1* DP, 2* RJ45, 1* MIC, 1* Line out, 1* Line in
  • M/B Form Factor : Mini ITX (170x170mm)
  • 1U 250W FLEX Power




Share

609.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Dimensions – 330 (W) x 192 (D) x 44 (H) mm
MB model – MI08-00 / Mini ITX (6.7-in * 6.7-in, 170 * 170mm) (Default)
– MI08-02 (W/TPM2.0)
Part No Non-Wifi Wifi
– HBJC150I08-H410-B – HBJC150I08I-H410-B
CPU/Chipset – Intel® 10th LGA 1200 Socket Core i7/i5/i3/Pentium/Celeron Comet Lake-S Processor (Max. 65W TDP)
– H410 chipset
BIOS – AMI 128Mb Flash ROM
Memory – 2* Dual CH non-ECC DDR4 2666/2400MHz SDRAM SO-DIMM up to 64GB
Network – 1 * Intel i219V GbE
– 1 * Intel i211AT GbE
Storage – 2 * 2.5” or 1 * 3.5” SATA3 6Gb/s internal drive bay
– 1 * M.2_SSD (M key-2242/2280) support NVMe
Expansion – 1* M.2 E-key 2230 (PCIex1/USB2.0)
– 1* PCIex16 slot
– Support onboard TPM2.0 (MI08-02) / optional
Rear I/O Port – 3 * USB 3.2 (Gen. 1)
– 1* USB 2.0
– 1 * HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1 * DP (Max Resolution: 4096×2304@60Hz)
– 2 * RJ45
– 1 * Mic, 1 * Line in, 1 * Line-out
– 4 * COM (COM 1 support RS232/422/485)
Front I/O Port – 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0
Power Source – 1U 250W FLEX POWER
– AC 90~240V input
Certification – CE, FCC, LVDS, RoHS
Environment – Operating Temperature : 0°C~50°C
– Storage Temperature : -10°C~70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Packing – Net Weight:3.5 KG
– Gross Weight:4.5 KG
– Color Box Dimension:560(W) x 400(D) x 140(H) mm
Warranty –2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Datasheet Download (PDF)
