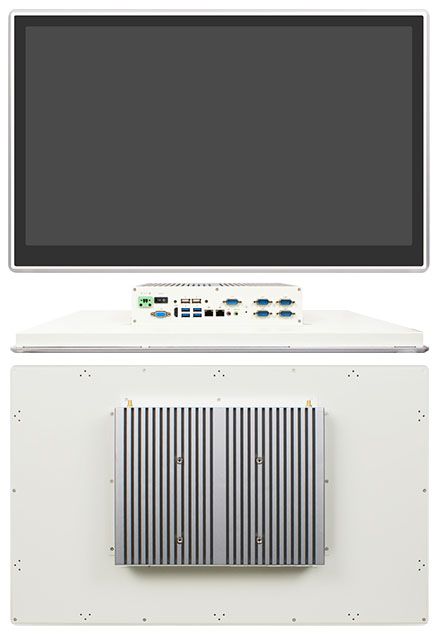

Jetway HPC238SC-FPH310 Panel-PC (Intel Coffee Lake-S H310) [23.8" Capacitive Touch Panel TFT, IP65, 12-24V DC-in]

Jetway HPC238SC-FPH310 Panel-PC (Intel Coffee Lake-S H310) [23.8" Capacitive Touch Panel TFT, <b>IP65, 12-24V DC-in</b>]
  • Coffee Lake-S H310 !
  • 23,8" !
  • IP65 !
  • 12-24V !

  • 23.8” 250 nits brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch Panel
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Front IP65 for protection against water and dust
  • 12~24V DC-input Support, with EOS, OVP design


Share

1449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 23.8″ With LED Backlight
Brightness (cd/m²) – 250 nits
Display Color – 16.7M
Resolution – 1920 x 1080 @60Hz
Viewing Angle (H/V) – 160°/160°
Pixel Pitch – 0.2745 x 0.2745mm
Aspect Ratio – 16:9
Contrast Ratio – 1000:1
Response Time – 25ms
 Touch Screen
Type – projected capacitive type
Active Range – 528.04 x 297.46mm ±0.3mm
Transparency – 85 ±5%
Operating Force – ≦10g
Surface Hardness – ≧6H (ASTM D3363, pressure 1N/45°)
 CASE
Panel Material – Aluminum
Case Material – Iron
Color – Silver + white
Coating Requirement – Spray Paint
 Main System
CPU – Intel® LGA1151 Socket Core I3,I5,I7 Pentium T Series processor
RAM – 2* DDR4 SO-DIMM (Max 32GB)
Flash ROM – 128MB SPI Flash ROM
Speaker – 2* 2W/8Ohm
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 10, Linux
 Storage
SATA – 1* 2.5” SATA HDD
M.2 (M Key) – 1 * M.2 Socket (2242 M Key)
 Expansion
M.2 (E Key) – 1* M.2 E Key 2230 for WIFI or 3G/4G (Support CNVi)
 I/O Connector
I/O Ports and Switches – 4* USB3.0, 2* USB2.0
– 4* RS232
– 1* HDMI
– 1* VGA
– 1* 8bit GPIO (5V)
– 1* Line-out，MIC
– 2* LAN (Intel® I211AT + I219LM Gigabit LAN)
– 1* Locking Jack 12~24V DC input
– 1* Power button
 Power Input
Input Power – AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12V DC with over current protection fuse
Power Consumption – 61.5W
 Dimension
Case Dimensions – 579.04*360.46*87.00mm
 Certifications
Certifications – CE, FCC, IP65(Front)-Option
 Safety
Shock – 1ms duration
Vibration – 5~500Hz/1 Grms
 Environment
Temperature – Operating: -10 ~ 50° C
– Storage: -20 ~ 70° C
Data sheet Download (PDF)
Data sheet Print view
