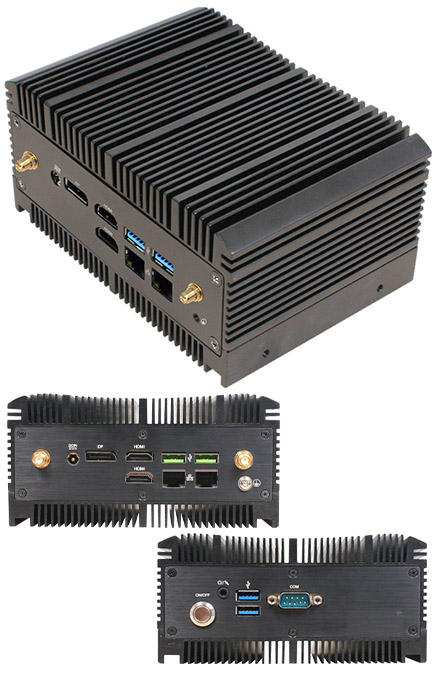

Jetway HBJC330U95V-5205 (Intel 5205U SoC  Processor) [12-24V DC, 2.5GBE LAN]

Jetway HBJC330U95V-5205 (Intel 5205U SoC  Processor) [12-24V DC, <b>2.5GBE LAN</b>]
  • Intel Comet Lake !
  • HBJC330U95V Series ! !

  • Intel® 5205U SoC Processor
  • Support Dual Channel DDR4 2666MHz up to 64GB
  • 1* Intel® I219LM GbE, 1* Intel® I225-V 2.5GbE
  • 1* M.2 (M-key, SATA interface), 1* M.2 (E-key, support CNVi)
  • 1* RS232/RS422/485, 4* USB3.2
  • 1* DP, 2* HDMI
  • 12~24V DC-in


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 Model – HBJC330U95V-10210 (CPU : 10210U, default)
– HBJC330U95VI-10210 (CPU : 10210U, Wifi)
– HBJC330U95V-5205 (CPU : 5205U)
– HBJC330U95VI-5205 (CPU : 5205U, Wifi)
 CPU/Chipset – Intel® Comet Lake i5-10210U 1.6G QC SoC Processor
– Intel® Comet Lake 5205U SoC Porcessor
 BIOS – AMI 128MB SMT Flash ROM
 Memory – 2 * DDR4 2666MHz SO-DIMM up to 64GB
 Network – 1* Intel® I219LM GbE
– 1* Intel® I225-V 2.5GbE
 Graphics – 1* HDMI1.4 (Max Resolution : 4096×2304@30Hz)
– 1* HDMI2.0 (Max Resolution : 4096×2304@60Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays
 Storage – 1 * M.2 (M-Key, 2242, SATA interface)
 Expansion – N/A
 Rear Panel I/O – 2 * USB3.2 (Gen2)
– 1 * DP1.4
– 1 * HDMI2.0
– 1 * HDMI1.4
– 2 * RJ45
– 1 * DC Jack (12~24V)
 Front Panel I/O – 1 * Audio Jack (Line out +MIC)
– 2 * USB3.2 (Gen2)
– 1 * RS232/422/485
– 1 * Power Button
 Internal Connector – 1 * M.2 (M-Key, SATA Interface)
– 1 * M.2 (E-Key) for CNVi or PCI-E/USB WIFI/BT
– 8bit GPIO
– 2 * USB2.0
 Power Source – 12~24V DC-in
– Adapter: DC 19V/6.32A 120W
 Compliance – CE, FCC, RoHS, ErP Ready (Option)
 Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
 Dimensions – 150 (W) x 106 (D) x 75 (H) mm
 OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
