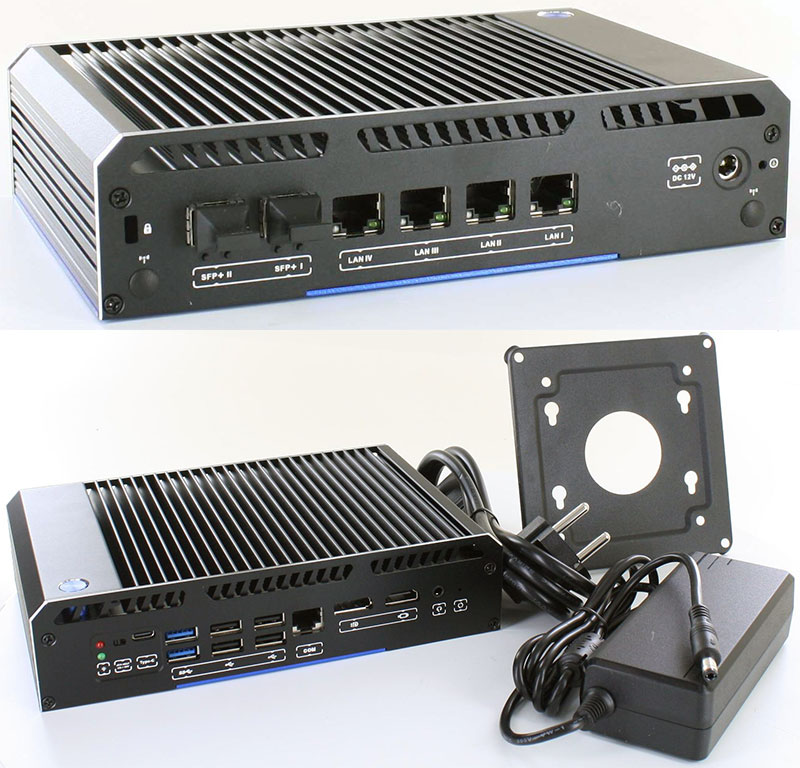

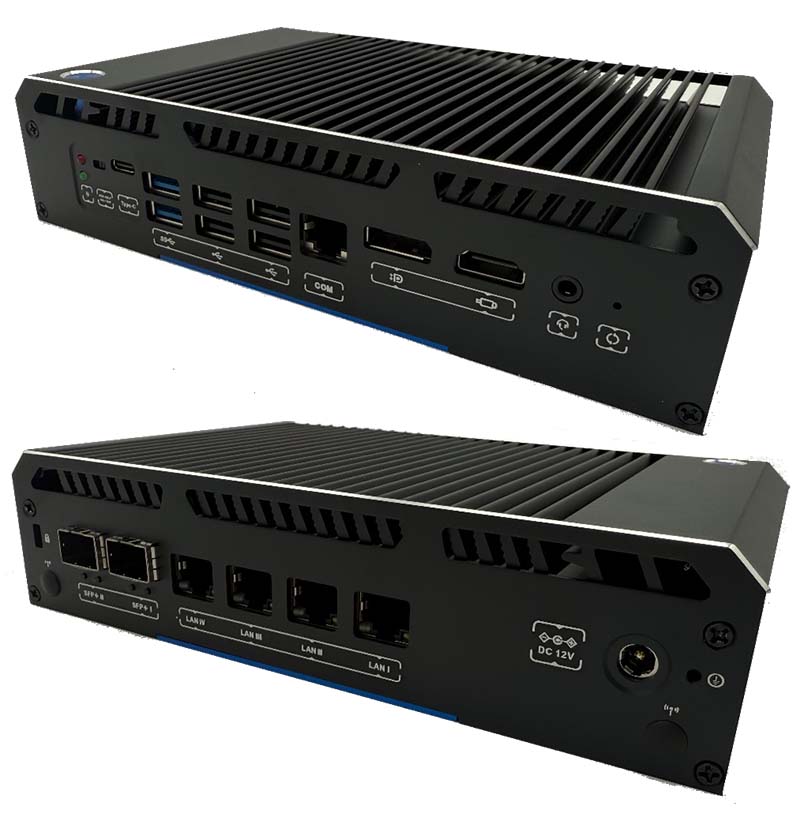

MPC-6LAN-N150 MiniPC (Intel N150, 6x LAN, SFP, NVMe/5G support) [FANLESS]

MPC-6LAN-N150 MiniPC (Intel N150, 6x LAN, SFP, NVMe/5G support) [<b>FANLESS</b>]
3D 360° View
  • 4x Gigabit LAN !
  • 2x SFP+ 10Gbps !
  • Metal enclosure !
  • 5G Modem support !

  • Intel® Pentium Processor N150
  • 1x SO-DIMM DDR4 Slot (32GB Max.)
  • 4x GbE LAN ports (Intel I211)
  • 2x SFP,10Gbps Intel 82599ES
  • 1x HDMI 2.1 Port / 1 x dP 1.4
  • 1x NMVe SSD slot
  • 1x M.2 for 4G/5G module (SIM card slot available)


Share

429.00 EUR
incl. 19% VAT, plus shipping
Available in 1-3 days
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
ParameterSpecification
CPUIntel® Processor N150 0.8–3.6 GHz
Cores / Threads4 Cores / 4 Threads
Cache6 MB Intel® Smart Cache
TDP6 W
ArchitectureProducts formerly Twin Lake
MemorySO-DIMM DDR4 slot × 1, max 16 GB
StorageSSD (M.2 2280 SATA / NVMe), no HDD expansion
AudioHD Audio Realtek ALC897
GraphicsIntel® UHD Graphics
Network10/100/1000/2500BASE-T Ethernet (RJ45) × 4 (Intel I226V); 82599ES SFP+ × 2
Extendable Slots M.2 E KEY 2230 × 1 (Wi-Fi / Bluetooth / Wi-Fi 6 module);
M.2 B KEY 3042/3052 × 1 (4G / 5G module with SIM slot)
OS SupportWindows 10, Windows 11, Ubuntu 24.04, CentOS 9
BIOS FunctionsAC Power Recovery, UEFI PXE Boot, Wake-on-LAN, Scheduled Power On/Off
VirtualizationIntel VT-x, VT-d supported; No Hyper-Threading
Working Environment−10 ~ 60 °C; 0 – 95 % RH (no condensation)
Working VoltageDC 12 V / 5 A
Static ElectricityContact discharge 2 kV, Air discharge 6 kV
Storage Environment−10 ~ 60 °C; 0 – 95 % RH (no condensation)
I/O Ports USB 3.0 × 1, USB 2.0 × 5, HDMI 2.1 × 1, DP 1.4 × 1,
LAN × 4, SFP+ × 2, USB Type-C × 1, DC-IN 12 V × 1,
ATX Self-Power-On × 1, 3.5 mm Audio Combo × 1,
RJ45 RS-232 × 1, BIOS Reset Button × 1
Built-in Socket FP_USB1 × 1, FP 8 PIN × 1, TPM 14 PIN × 1, CPU FAN1 × 1,
SPK_CON 4 PIN × 1, GPIO 10 PIN × 1, ESPI_DEBUG 10 PIN × 1,
M2B_PWR1 3 PIN × 1, JBAT 2 PIN × 1, BATCON × 1, SYS_FAN1 4 PIN × 1, PW_IN 2 PIN Power Terminal
Display Mode Dual Display (HDMI 2.1 + DP 1.4), Copy or Extended Mode;
Max Resolution (HDMI 2.1): 4096 × 2304 @ 60 Hz;
Max Resolution (DP 1.4): 4096 × 2304 @ 60 Hz
Dimensions / Weight197.4 × 126.3 × 47.5 mm; 1.2 kg (net), 1.8 kg (gross)
Material / FeaturesAluminum alloy case, patented compact design, supports 7 × 24 operation
CoolingPassive (natural heat dissipation)
Bracket OptionsDedicated Bracket; Supports VESA, optional Ear Mount / DIN Bracket
Packing BoxKraft Paper Box and Anti-Shock Corrugated Carton
Packing List 1x Barebone, 1x Power Cable (EU), 1x AC/DC Power Adapter, 1x Screws Bag
1x QA Card, 1x User Manual, 1x VESA Bracket
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
