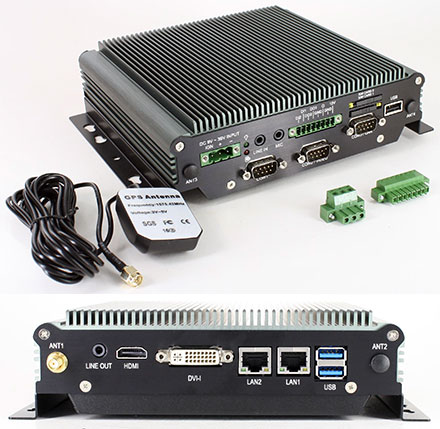

FleetPC-4-D Car-PC (Intel Celeron N3060 2x2.48Ghz, Autostart-Controller, 9-36V Automotive PSU, GPS) [FANLESS]

FleetPC-4-D Car-PC (Intel Celeron N3060 2x2.48Ghz, Autostart-Controller, 9-36V Automotive PSU, GPS) [<b>FANLESS</b>]
3D 360° View
  • Fanless ! GPS !
  • Auto Power On/Off !
  • eMark certified !
  • VBOX-3130

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or SATA DOM module - 1x SO-DDR-3L RAM (up to 8GB)

The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609
[more]

Share

849.00 EUR
incl. 19% VAT, plus shipping
In Stock (6 pcs)

Add to cart Configurator

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or SATA DOM module - 1x SO-DDR-3L RAM (up to 8GB)

The PC is completely fanless and is equipped with an Intel Celeron N3060 2x2.48GHz CPU.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei MU609)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- Intel Dual Core Celeron N3060 2.48GHz CPU
- Integrated, intelligent Automotive power supply
- 3x RS232
- GPS (ublox 6 with G-sensor)
- 2x Gigabit LAN
- DVI-I + HDMI
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 2 x DI / 2 x DO with Relay 12V / 100mA
- Vibration/shock tested

For FleetPC-4-D we offer an direct connector cable for our TFT-dispays.

Dimensions / Weight 182mm W x 167.6mm D x 54mm H, 1.4kg
CPU Intel Dual Core Celeron N3060 2.48 GHz
RAM 1x SO-DDR-3L RAM (up to 8GB)
Graphics Intel HD Graphics
GPS VDB-800SG (ublox 6 with G-sensor)
Expansion - 3x Mini-PCIe
OS Support Windows 7, Windows 8.1, Windows 10, Linux
Vibration & Shock MIL-STD-810F
Operating temperature -40~70°C (with SSD)
Certification CE, FCC, eMark
I/O - 2x Gigabit LAN (Intel i210-AT)
- 3x RS232 (2 with 232/422/485)
- 2x USB3.0
- 1x USB2.0
- GPIO port (2in, 2out, with Relay 12V/100mA)
- Mic-In, SPK Out
- 1x DVI-I (for DVI-D and VGA), 1x HDMI
- 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
Drive bays 1 x 2.5" SATA HDD/SSD drive bay, 1x SATA DOM
Power supply 9~36V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Scope of supply - FleetPC-4-D PC with Intel Celeron N3060 (2x2.48Ghz), mounting brackets
- 1x Pigtail + Antenna for GPS
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual [EN] Download
Drivers (Win7+8+10) Download
Test Tools Download

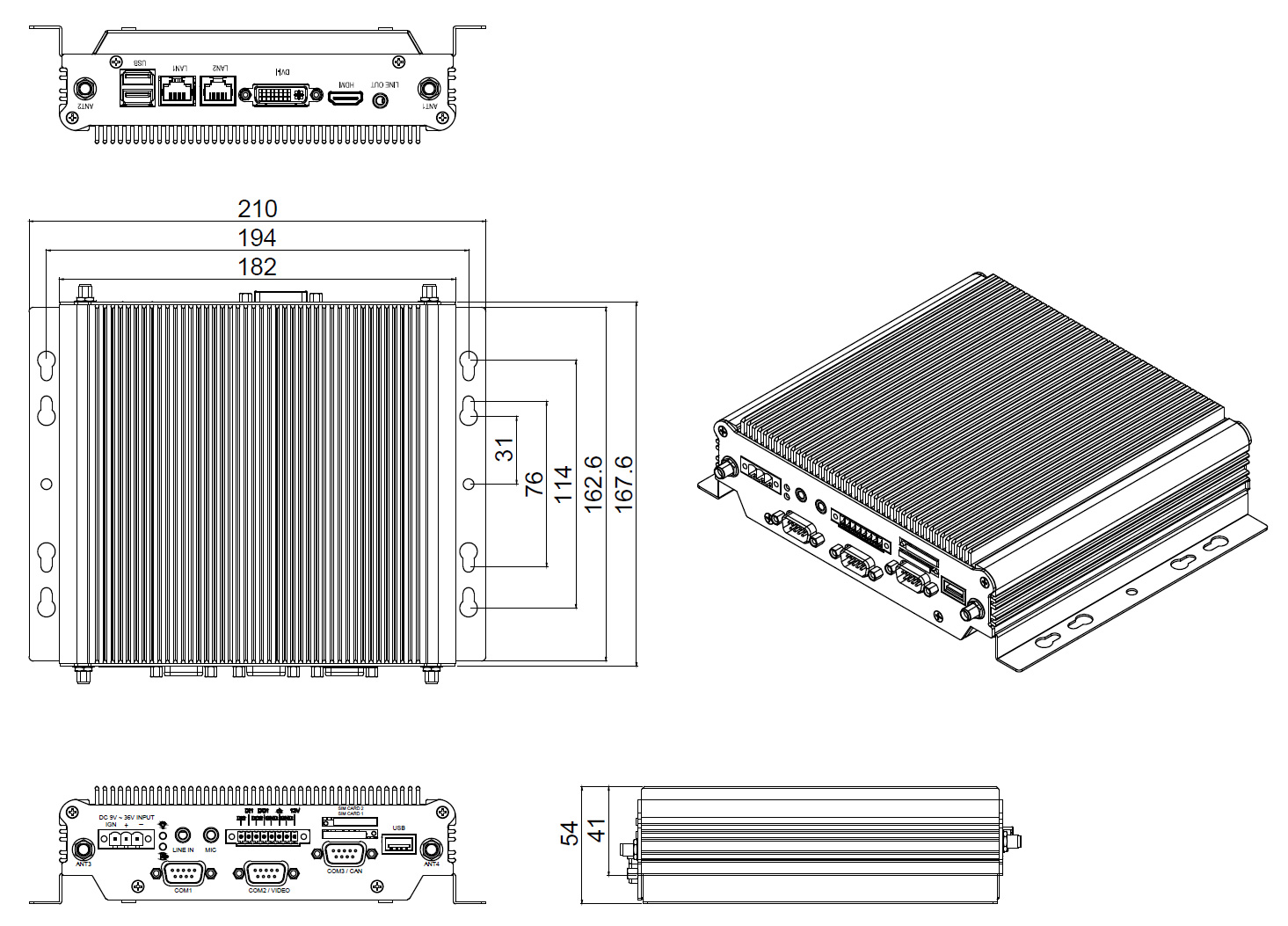

Drawing Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

power consumption
tested with SSD, Windows 10 and 84W AC Adapter
Standby without ign. : 2,8W
Windows Standby 6,5W
Systemboot: 19,5W
Idle: 14,2W
full load: 22,8W

Modem compatibility
Compatible with Mobile partner or network connection
- Windows 7 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2
- Windows 8 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2
- Windows 10 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2

Not compatible with Mobile partner only with network connection
- Windows 8 [32/64bit]: ME909s120
- Windows 7 [32/64bit]: ME909s120

Assignment of Antenna-Connection
ANT 1 = GPS (Please connect the included GPS Antenna to this Connector)

-- If you order additional to the System WLAN/Bluetooth or 3G/UMTS/LTE Device we will assemble the Antenna-Connectors as follow: --

ANT 2 = 3G/LTE/UMTS
ANT 3 + 4 = BT/WLAN
FleetPC-4-D Windows compability
Windows 7 (32/64bit) with USB Patcher Patched ISO
Windows 8 (64bit) [Intel released no SerialIO driver for Windows 8 32bit]
Windows 10(32/64 bit)
